Balers — Vertical Baler
Vertical Balers
Instead of seeing waste, consider it a valuable asset with market potential. Available in 6 models from 5 to 50 tonnes compaction force — baled recyclables save space, reduce handling time and generate revenue.
Overview
Turn recyclables into revenue

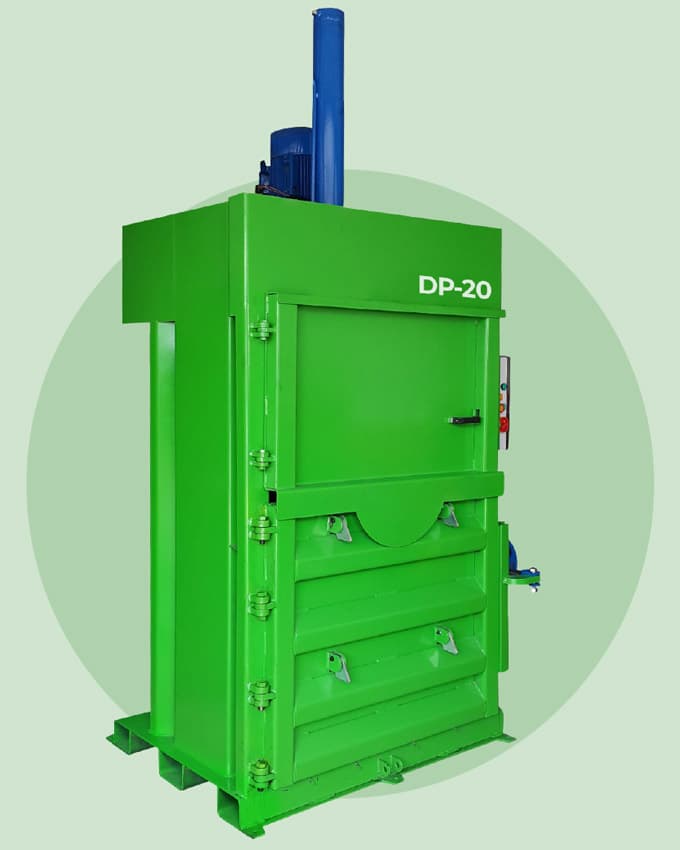

Downwaste vertical balers compress and bind recyclable materials — cardboard, plastic foil, paper, PET bottles, aluminium and tin cans — into compact, easy-to-handle bales. Properly baled and stored recyclables save space and time, and generate revenue by creating a saleable commodity from materials that would otherwise go to landfill or general waste.
Available in six models from DP5 (5 tonnes compaction) to DP50 (50 tonnes), covering everything from small retail operations to large-scale industrial sites. All models feature automatic baling cycles, mechanical belt ejection, and silent operation under 40 dB.
Materials processed: Cardboard · Plastic foil · Paper · PET bottles · Aluminium cans · Tin cans · Mixed plastics
Models
Six sizes available — DP5 to DP50
DP5
Max compaction: 5 t
| Cycle time | 45 sec |
| W × D × H | 900 mm × 700 mm × 2,250 mm |
| Feeding inlet | 500 × 700 mm |
| Bale size | 700×500×800 mm |
| Bale weight | 60–80 kg |
| Motor | 2 kW |
| Noise | <40 dB |
| Straps | 2 |
DP10
Max compaction: 10 t
| Cycle time | 45 sec |
| W × D × H | 900 mm × 700 mm × 2,250 mm |
| Feeding inlet | 500 × 700 mm |
| Bale size | 700×500×800 mm |
| Bale weight | 80–120 kg |
| Motor | 3 kW |
| Noise | <40 dB |
| Straps | 2 |
DP20
Max compaction: 20 t
| Cycle time | 45 sec |
| W × D × H | 1,000 mm × 800 mm × 2,400 mm |
| Feeding inlet | 600 × 750 mm |
| Bale size | 800×600×900 mm |
| Bale weight | 120–160 kg |
| Motor | 4 kW |
| Noise | <40 dB |
| Straps | 3 |
DP25
Max compaction: 25 t
| Cycle time | 50 sec |
| W × D × H | 1,100 mm × 900 mm × 2,500 mm |
| Feeding inlet | 700 × 800 mm |
| Bale size | 850×700×1,000 mm |
| Bale weight | 160–200 kg |
| Motor | 5.5 kW |
| Noise | <40 dB |
| Straps | 3 |
DP30
Max compaction: 30 t
| Cycle time | 50 sec |
| W × D × H | 1,200 mm × 1,000 mm × 2,600 mm |
| Feeding inlet | 750 × 850 mm |
| Bale size | 900×750×1,100 mm |
| Bale weight | 200–250 kg |
| Motor | 7.5 kW |
| Noise | <40 dB |
| Straps | 4 |
DP50
Max compaction: 50 t
| Cycle time | 60 sec |
| W × D × H | 1,400 mm × 1,100 mm × 2,800 mm |
| Feeding inlet | 900 × 1,000 mm |
| Bale size | 1,050×900×1,200 mm |
| Bale weight | 300–400 kg |
| Motor | 11 kW |
| Noise | <40 dB |
| Straps | 4 |
Features
Why specify a Downwaste baler?
Handles all key recyclables
Cardboard, plastic foil, paper, PET bottles, aluminium and tin cans — the vertical baler processes all common recyclable streams, enabling efficient in-house sorting and baling.
Large and wide feeding inlet
A generous feeding inlet makes it fast and easy to load loose materials without pre-cutting or pre-compressing. Reduces the time operatives spend on waste handling.
Superior press force with long stroke
The combination of high compaction force (5–50 tonnes depending on model) and a long press stroke maximises bale density — producing consistently heavy, high-value bales.
Intelligent safety features
Interlocked access doors, pressure relief valves and automatic cycle stops protect operatives throughout the baling process. Fully compliant with UK machinery safety regulations.
Quick cycles — less time on waste handling
Fast 45–60 second automatic cycles mean baling is completed rapidly, freeing staff time. Automatic bale ejection by belt removes the need for manual extraction.
Turns waste into revenue
Properly baled and stored recyclables are a saleable commodity. Baled cardboard, plastics and metals command positive gate prices — offsetting disposal costs and generating direct revenue.
Silent operation — <40 dB
All models operate at under 40 dB — quieter than a normal conversation. Suitable for use in noise-sensitive environments including retail, hospitality and residential facilities management.
International warranty
Every Downwaste baler carries an international warranty, backed by our UK service and support network.
FAQ
Common questions
What is a vertical baler?
A vertical baler is a machine that compresses recyclable materials — cardboard, plastic, paper, cans — into compact, tied bales using a vertical hydraulic ram. The bales are easy to store, handle and transport, and can be sold to recycling merchants for revenue.
What is the difference between a baler and a compactor?
A compactor reduces waste volume and typically deposits waste into a sealed container or bag for disposal. A baler compresses clean, segregated recyclable materials into tied bales that are sold as a commodity. Balers are used for recyclables; compactors for general waste destined for landfill or energy recovery.
Who needs a vertical baler?
Vertical balers are ideal for any business that generates significant volumes of cardboard, plastic or other recyclables — including retailers, distribution centres, manufacturers, hotels, supermarkets, schools and waste management operators.
What materials can a Downwaste vertical baler process?
Cardboard, plastic foil, paper, PET bottles, aluminium cans, tin cans and mixed plastics. The correct model depends on the primary material and the volume generated.
How do I choose the right model?
Choose based on your daily volume of recyclables and the required bale weight. The DP5 suits lower-volume operations (e.g. small retail), while the DP50 is designed for high-throughput industrial or large commercial sites. Our UK team can advise following a brief site review.
Can a baler generate revenue?
Yes. Baled cardboard, plastic and metals are saleable commodities. The price varies by material and market conditions, but baling segregated recyclables rather than disposing of them in general waste typically generates a positive return — either as direct income or avoided disposal costs.
Can a vertical baler be installed in an existing building?
Yes, provided the room has adequate ceiling height and floor loading capacity. All models require a standard 3-phase 400V/50Hz power supply. Our UK installation team conducts a site survey to confirm suitability before installation.
Get a quote
Specify a vertical baler for your site
Tell us your recyclable volumes and primary materials and our UK team will recommend the right model. Add to your quote or use the estimator for a guide price.
